Fire Glaze 60 (Dry)

High performance fire resistant glazing system.

APPLICATION

Sealmaster offer intumescent solutions for both glazed openings
in fire doors and glazed fire screens. For 60 minute fire resistance
applications these solutions are provided by Fireglaze 2000 with
FireGlaze GL60 liner.

FEATURES & BENEFITS

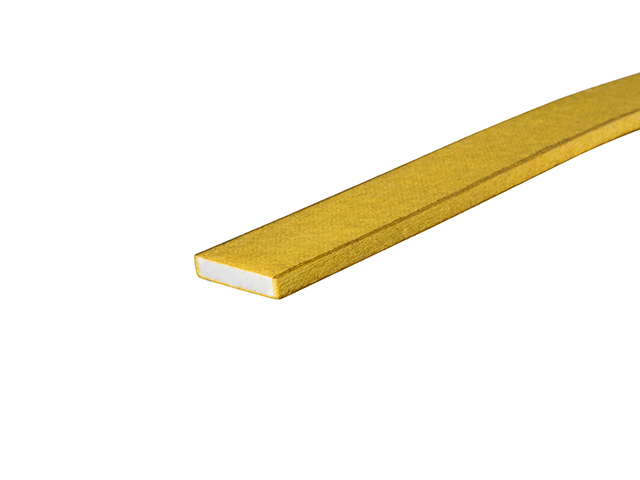

• FireGlaze 2000 is an ammonium phoshate/ceramic based
intumescent strip developed to provide designers with a dry
glazing system option to the FireGlaze Compound wet solution.
• FireGlaze GL60 liner is an ammonium phosphate based
intumescent strip developed specifically for 60 minute fire
resistance glazed timber fire door and screen applications and is
used in combination with FireGlaze 2000.
Applications
• FireGlaze 2000 has independent fire test and Third Party
certification evidence for a wide range of fire resisting glasses,
timbers and opening sizes including, uniquely, 60 minute fire
resistance performance in softwood glazed screens when used
in combination with FireGlaze GL60 liner. Its fire resistance
perfomance is enhanced by installing it in combination with a thin
layer of FireGlaze Compound.
• FireGlaze GL60 liner, as its name suggests, is used to line glazed
openings in fire doors or fire screens to provide an essential
intumescent contribution to the the 60 minute fire restance
performance of these building elements.
Sizes
• Available at 5mm thick and in 2100mm lengths, FireGlaze 2000 is
25mm width as standard but can be supplied in a range of widths
to suit different glass types for both glazed fire door openings and
glazed screen applications. (type FG2000)
• Available at 2mm thick and in 2100mm lengths, FireGlaze GL60
liner is supplied in 45mm, 54mm or 63mm widths as standard.
Other widths are available to order. (type FGL60)

Product ref: FGL60/63

Certifications: Certifire

Product categories: Fire Glazing Seals

Specifications

HOW TO SPECIFY

Please Quote, (Product Ref/Size/Colour/Quantity) (Example: FG2000 & FGL60/2.1m/White/100)

FGL60/63
63mm
2.1m
White
2mm
FGL60/54
54mm
2.1m
White
2mm
FG2000
25mm
2.1m
White, Oak, Brown, Grey, Black
5mm
FGL60/45
45mm
2.1m
White
2mm
