Hurricane

The Hurricane Seal provides a high performance weather, draught proofing, acoustic and light sealing solution.

APPLICATIONS

A stop seal available in surface fixed or rebated designs and suitable for a wide range of window and door sealing applications.

FEATURES & BENEFITS

Hurricane rebated seals are primarily designed for use with new purpose made window and doors whilst the surface fixed versions are suitable for upgrading existing windows and doors.

Hurricane rebated seals are particularly suited for fitting all around casement windows with cranked hinges.

Hurricane seals are suitable for:

Situations where smoke / gas /air leakage is important. Leakage rates as low as 4m3 / hour / metre have been achieved at 600pa pressure using a Hurricane rebated seal all around a timber casement window.

Situations where watertightness is important. The Hurricane rebated seal with the 017 insert maintained watertightness at 750pa pressure.

Dark rooms for photographic work.

Situations where noise penetration is important. An improvement in the order of Rw=10db reduction in sound transmission has been achieved with the Hurricane rebated seal with the 014 insert.
Hurricane stop seals aluminium carriers are available with a wide range of angle blade and compression bulb inserts to suit the applications illustrated above and many others.

Product ref: SGS401

Product categories: Door Stop & Window Seals

Specifications

HOW TO SPECIFY

Please Quote, (Product Ref/Size/Colour/Quantity) (Example: SF401/2.1m/SatinGold/100)

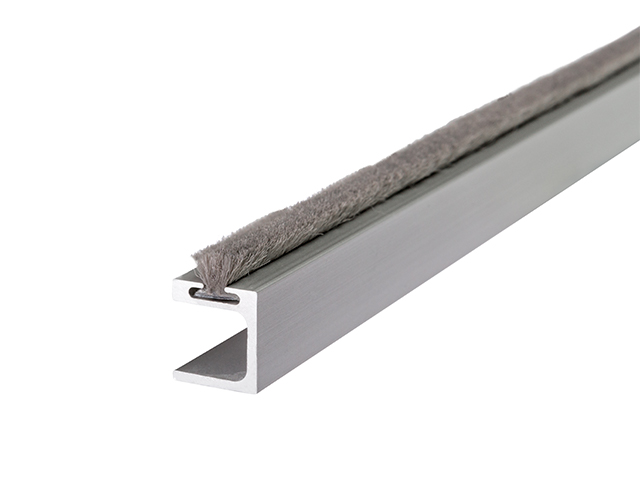

SGS401
12.5mm
Max 3m
15mm
Satin Silver

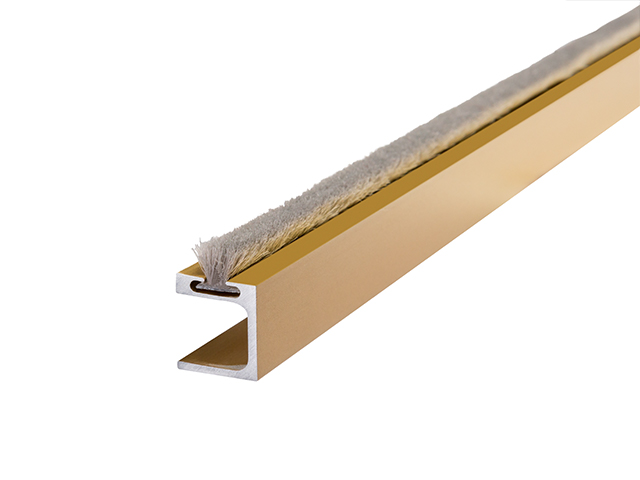

SGG401
12.5mm
Max 3m
15mm
Satin Gold
SFS015
9.5mm
Max 3m
3mm
Satin Silver

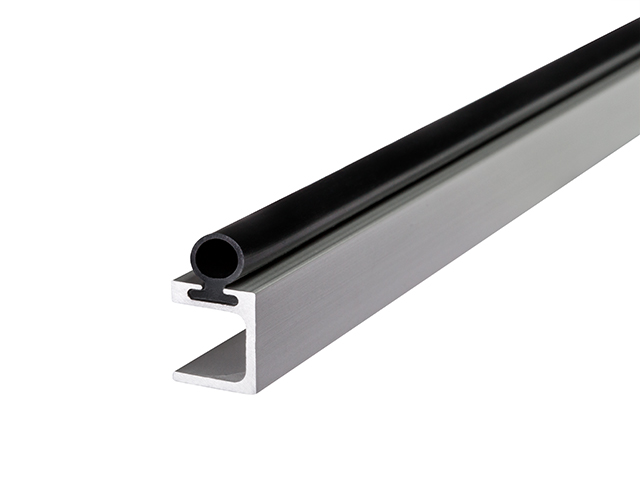

SGS016
12.5mm
Max 3m
15mm
Satin Silver

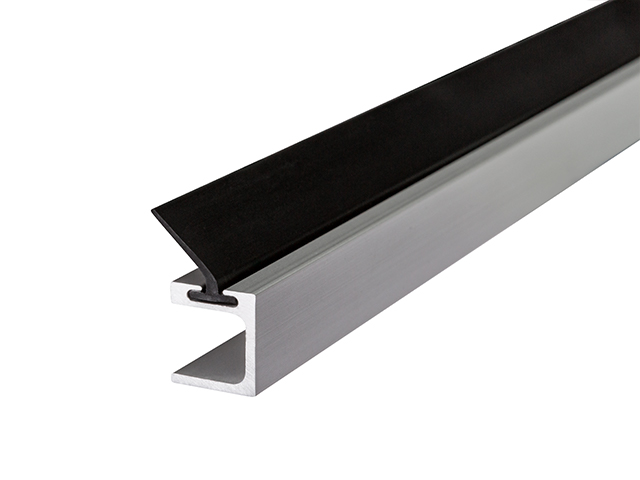

SGS015
12.5mm
Max 3m
15mm
Satin Silver

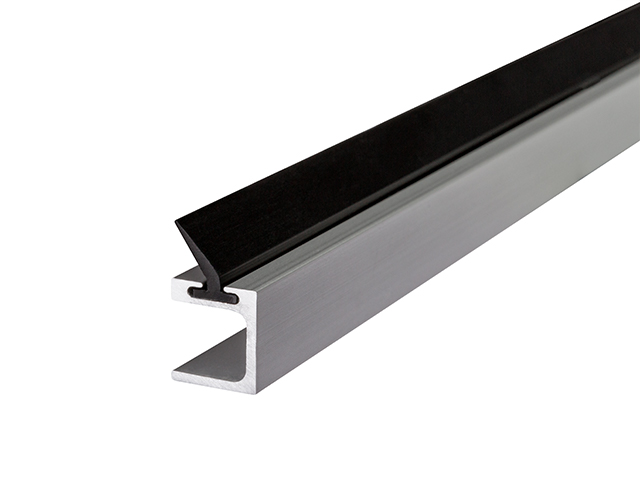

SGS014
12.5mm
Max 3m
15mm
Satin Silver

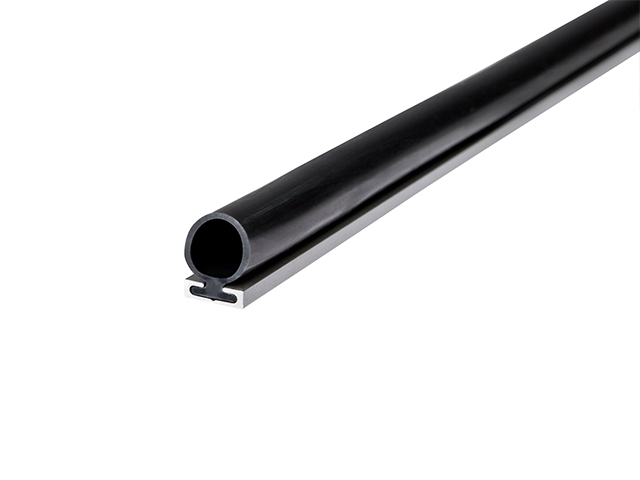

SFS018
9.5mm
Max 3m
3mm
Satin Silver

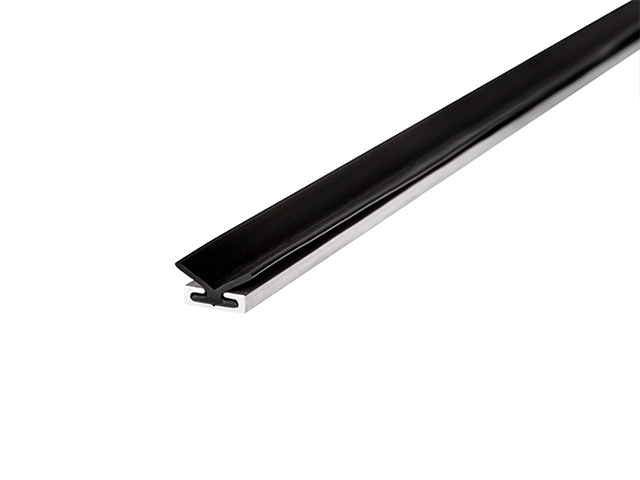

SFS017
9.5mm
Max 3m
3mm
Satin Silver

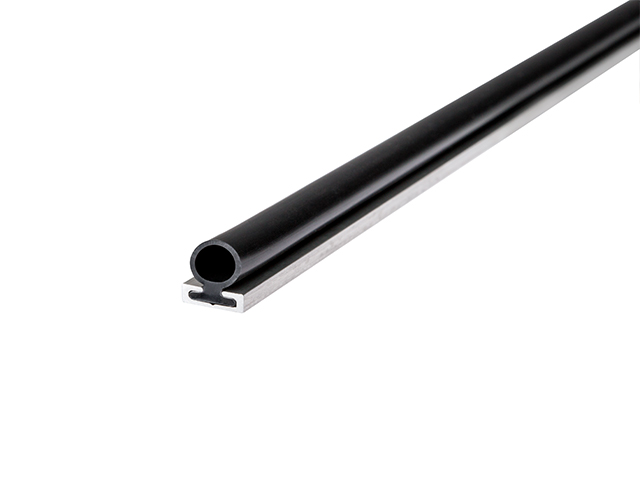

SFS016
9.5mm
Max 3m
3mm
Satin Silver

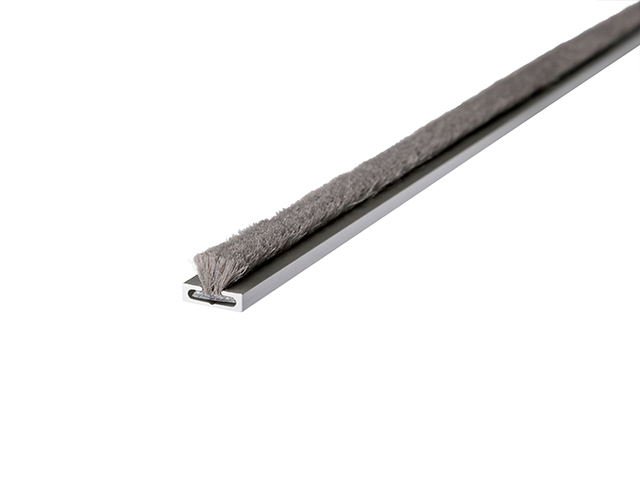

SFS401
9.5mm
Max 3m
3mm
Satin Silver
SFS014
9.5mm
Max 3m
3mm
Satin Silver

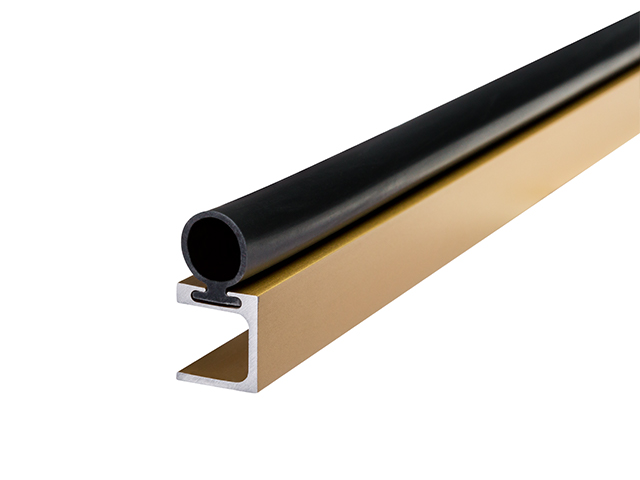

SGG018
12.5mm
Max 3m
15mm
Satin Gold

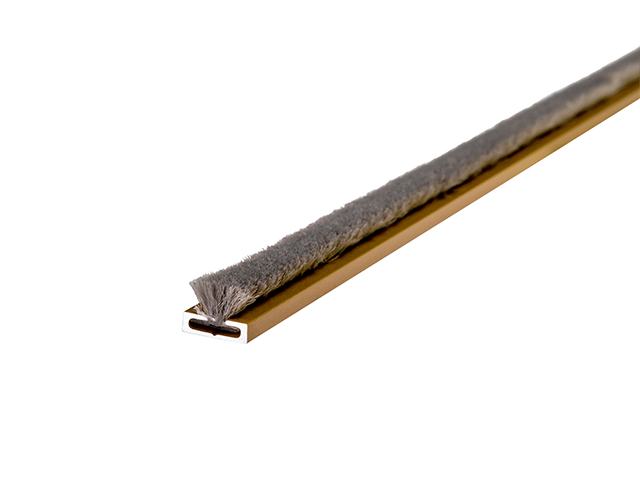

SFG401
9.5mm
Max 3m
3mm
Satin Gold

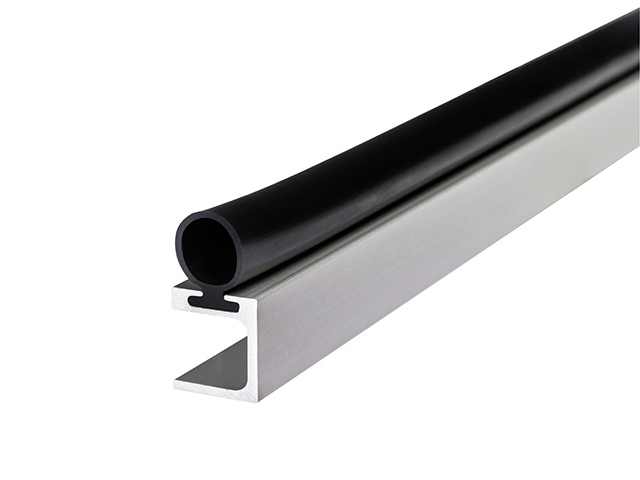

SGS018
12.5mm
Max 3m
15mm
Satin Silver

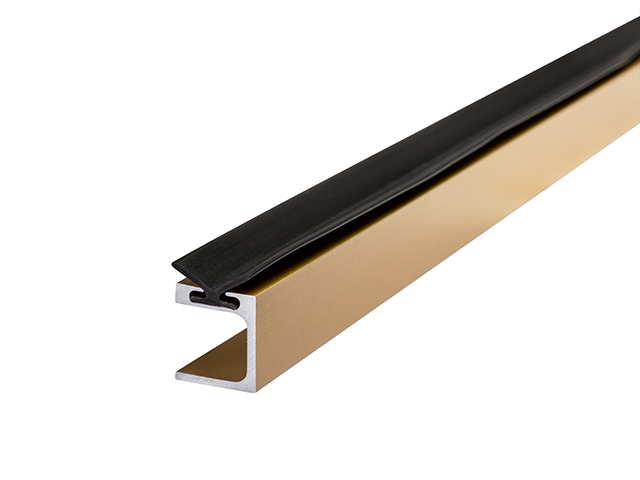

SGG017
12.5mm
Max 3m
15mm
Satin Gold
SGS017
12.5mm
Max 3m
15mm
Satin Silver

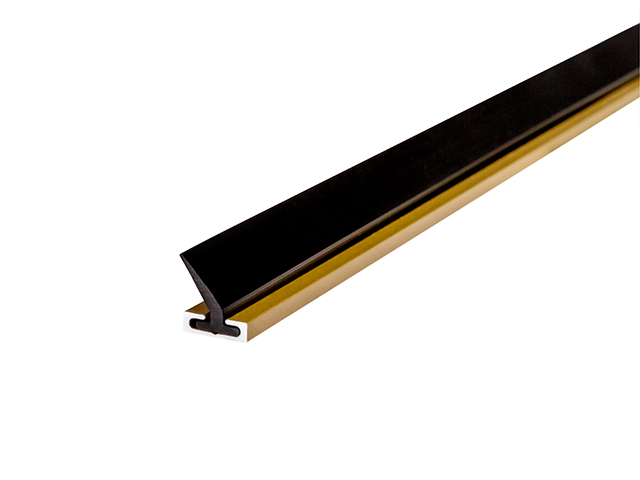

SFG014
9.5mm
Max 3m
3mm
Satin Gold
SFG015
9.5mm
Max 3m
3mm
Satin Gold

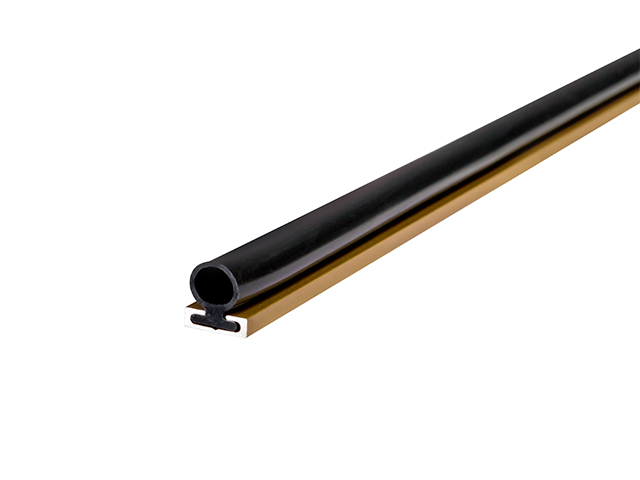

SFG016
9.5mm
Max 3m
3mm
Satin Gold

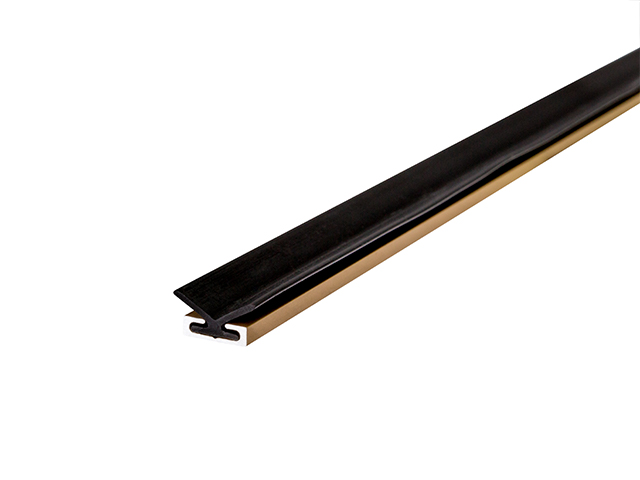

SFG017
9.5mm
Max 3m
3mm
Satin Gold

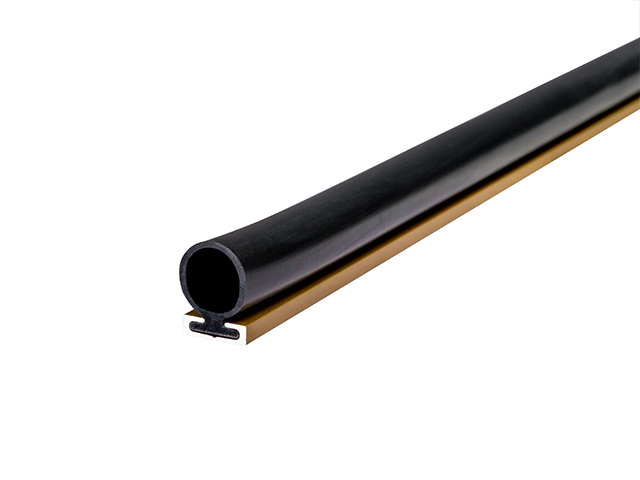

SFG018
9.5mm
Max 3m
3mm
Satin Gold

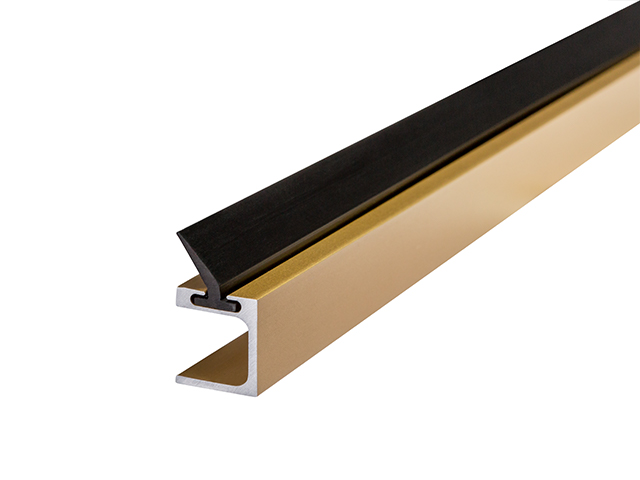

SGG014
12.5mm
Max 3m
15mm
Satin Gold

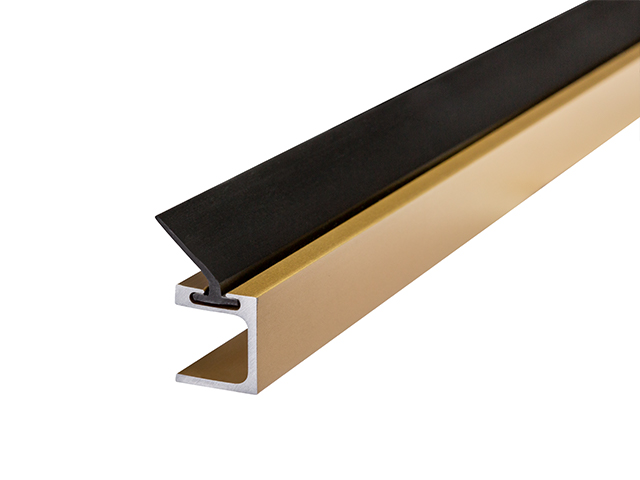

SGG015
12.5mm
Max 3m
15mm
Satin Gold

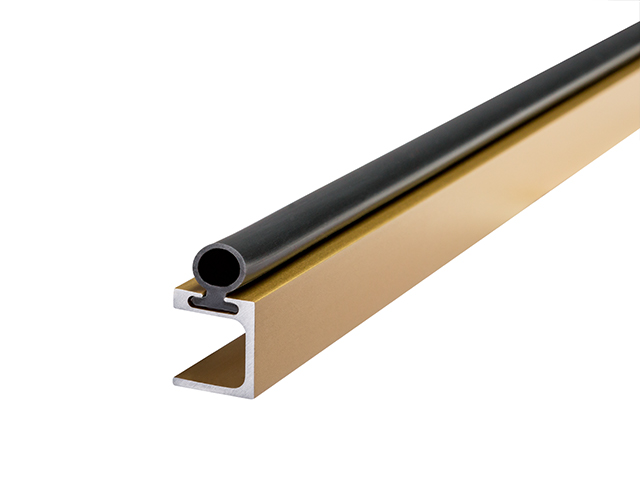

SGG016
12.5mm
Max 3m
15mm
Satin Gold
